Speed Engineering, LLC has developed three different devices to send
crankshaft position information to the Plasma CD ignition
systems. One method uses the Hall Effect Module which is
installed in the accessory case and senses crank shaft position by
means of the non-impulse magneto drive gear. The second mechanism is the Mini Sensor described on the Mini
Sensor page located here. The old
style triggering mechanism is
the Direct Crank Sensor system described here.

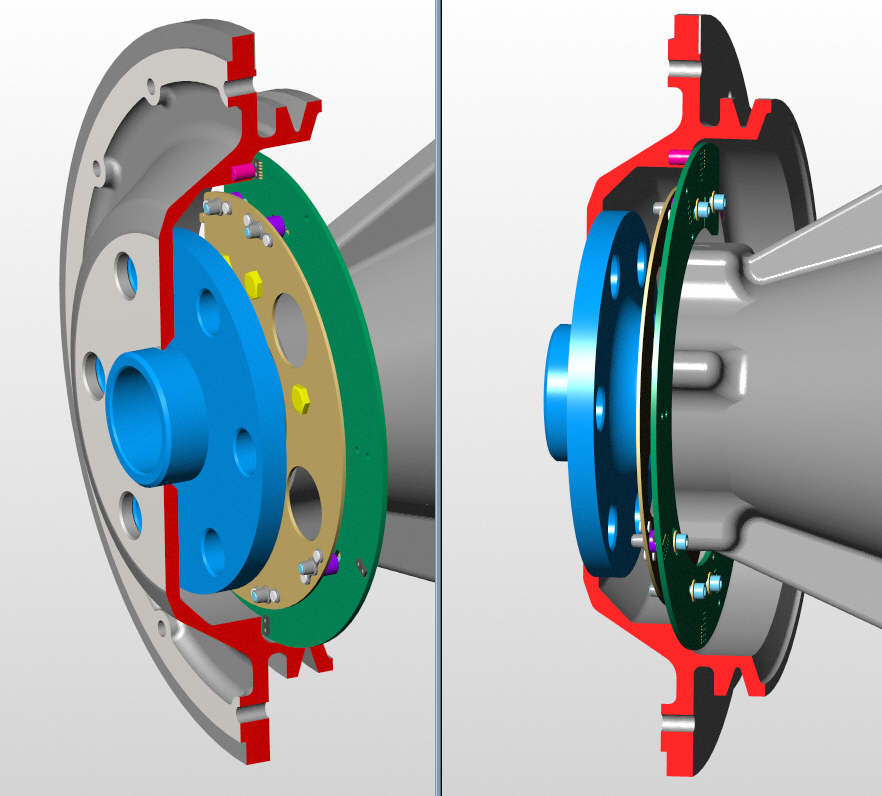

Direct Crank Sensor triggering mechanism is versatile and will work
with most aircraft engines.
engines and all Continental engines must use the Direct Crank Sensor
or the Mini Sensor.
crank sensor circuit board has two completely independent triggering
circuits if it is used for dual Plasma CDI applications.
On single installations only the outer set of sensors and
associated wiring harness is installed.

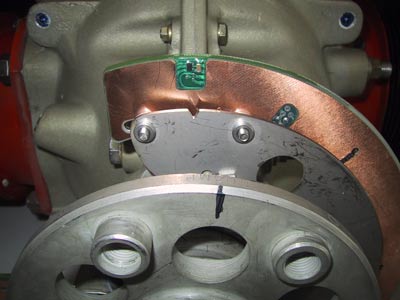

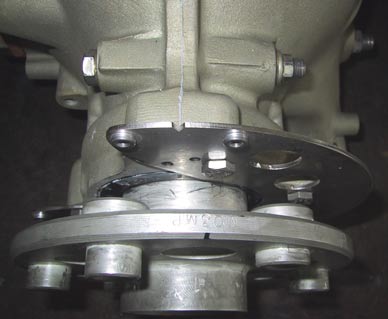

Lycoming Direct Crank Sensor Installation
Narrow-Deck Direct Crank Sensor Installation
Crank Sensor Installation
applicable for Franklin 6-cyl. engines.

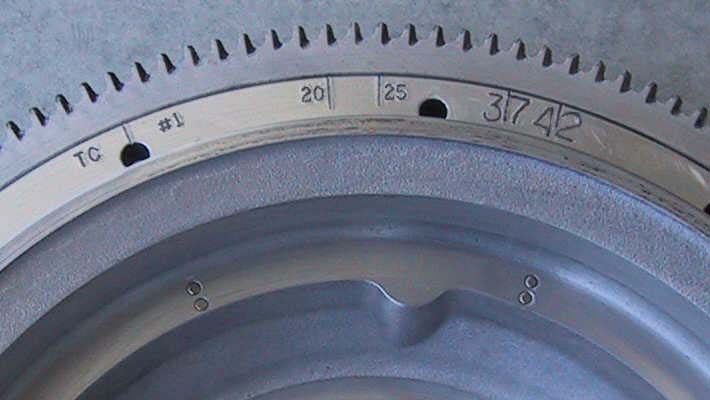

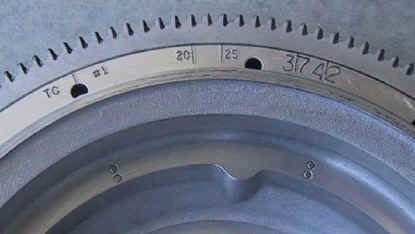

above are the trigger magnet holder, counter weight, and crank sensor mounting bracket
designed specifically for Continental 550 engines.
Add $195 to the ignition system price.
O-200 Crank Sensor Installation

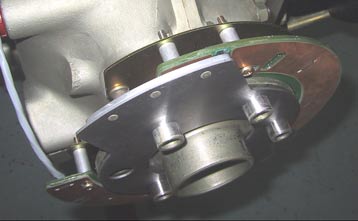

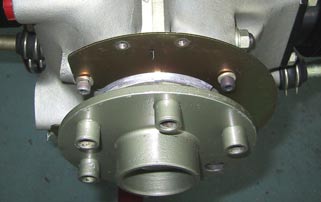

The crank sensor
mounting bracket and trigger magnet plate designed
specifically for the Continental O-200 engine are
pictured below. Add $195 to the ignition
system price for installation on a Continental
